spectromob – Portable Spectrophotometer

spectromob – Portable Spectrophotometer

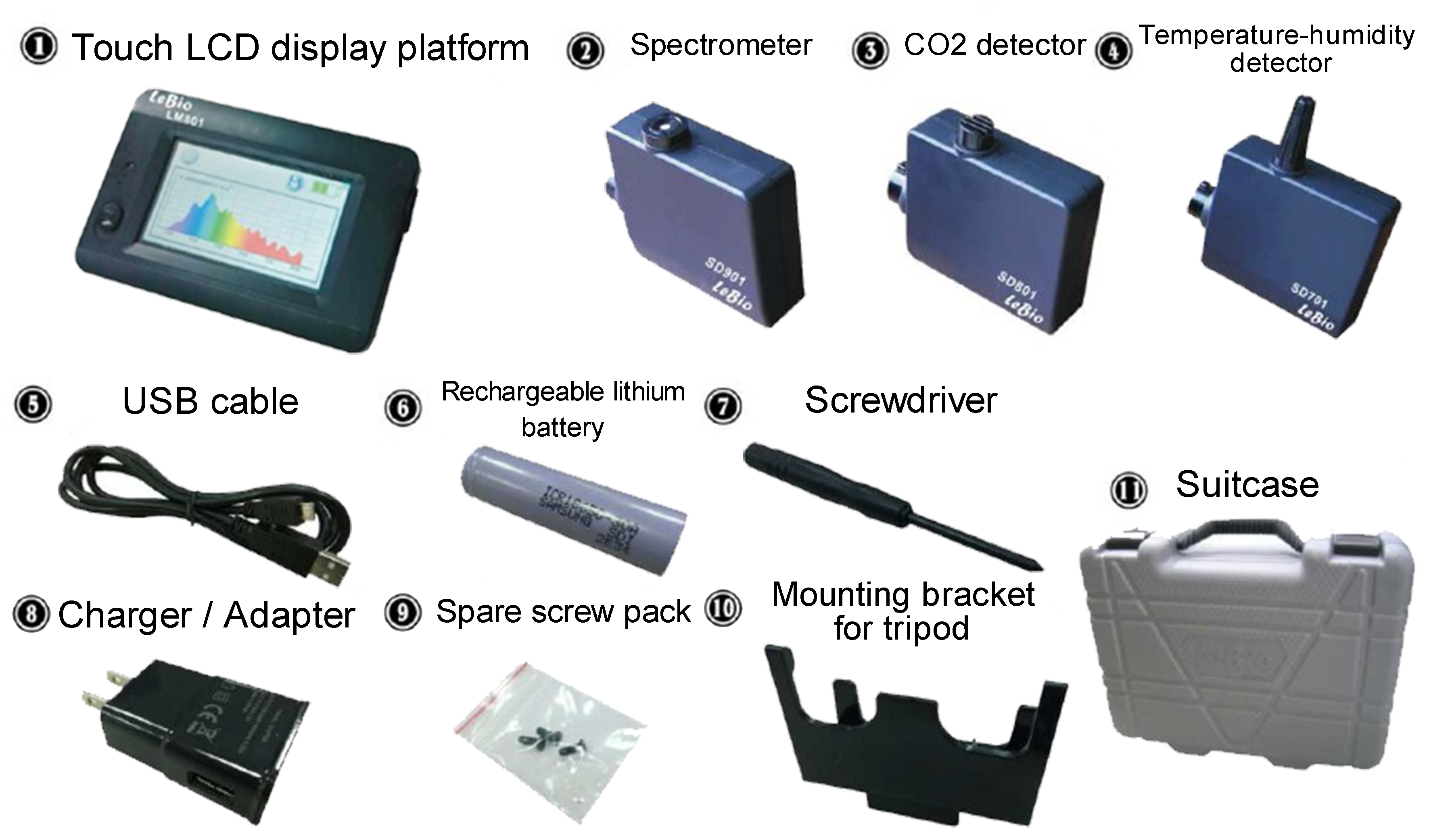

Product features

• Can be measured directly in the sun, all four seasons long.
• Handheld: provides touch multi-function platform.
• Measurements monitoring sensor design: base and host are separate structures, allowing multiple selection and replacement of sensors types.
• Patented structure: special patented design, can adjust Sensor angle for better alignment.
• Several way to measure: can be handheld, placed on a table or fixed on a tripod
• Measurements compliance with environmental requirements: provides complex and blind spot environment, to get more accurate measurement data.
• Several applications: LED factories, plant factories, greenhouses and crops plantation

DISPLAY PLATEFORM (LM801)

• Display: 4.3 “LCD (480 x 270) single-point touch panel
• Data Output: Bluetooth
• Data Format: bundled into JPG image file transfer
• Data Storage Capacity: 1200 files
• Dimensions:
  – Main Base: 162mm (L) x 106mm (W) x 41mm (H)
• Weight: 380g
• Ambient temperature: -10 ~ 50 ° C
• Storage temperature: -30 ~ 70 ° C
• Humidity: 0 ~ 90%
• Battery duration: varies depending on the set (using the full-featured approximately 5 hours)
• Power supply: 3000 mAh / rechargeable lithium battery
• Language: English / Traditional Chinese / Simplified Chinese

SPECTROMETER DETECTOR (SD901)

• Wavelength measurement range: 340 nm ~ 850 nm,
  full spectrum can be arbitrarily set to 10 spectral segments (segments range may overlap), while measuring
• Measurement unit:
  Intensity / energy measurement: Lux, u-mole / s.m2, W / m2
  Color measurement: CRI, (x, y), CCT
• Volume metering sources: sunlight, artificial light
• Time setting: You can set the auto or the manual.
• Maximum measuring range: 200,000 Lux
• Measuring modes: manual, automatic, single measurement, continuous measurement
• Illumination Accuracy: ± 5%
• Color accuracy: ± 0.002
• Spectral resolution: 10 nm
• Dimension: L91.5 x W84.5 x H25 mm

CO2 DETECTOR (SD801)

• Operating temperature range: 0°C ~ 50°C
• Operating humidity range: 0 ~ 90% RH (Non-condensing)
• Measuring range: 5000 ppm
• Accuracy: ± 30ppm ± 5%
• Reaction time: (90%): 60 sec
• Sampling time: 3 sec
• Dimensions: L91.5 x W78 x H25mm
• Weight: 80g

TEMPERATURE – HUMIDITY DETECTOR (SD701)

• Temperature range: -30°C ~ 115°C (Celsius and Fahrenheit supports display)
• Humidity range: 0 ~ 100% RH
• Temperature display accuracy: (25°C): ± 0.3°C
• Humidity accuracy: (25 ° C): ± 4.5% RH
• Temperature reaction time: (15°C ~ 45°C): 10 sec
• Humidity reaction time: (35% RH ~ 75% RH): 10 sec
• Dimension: L91.5 x W102 x H25 mm
• Weight: 60g

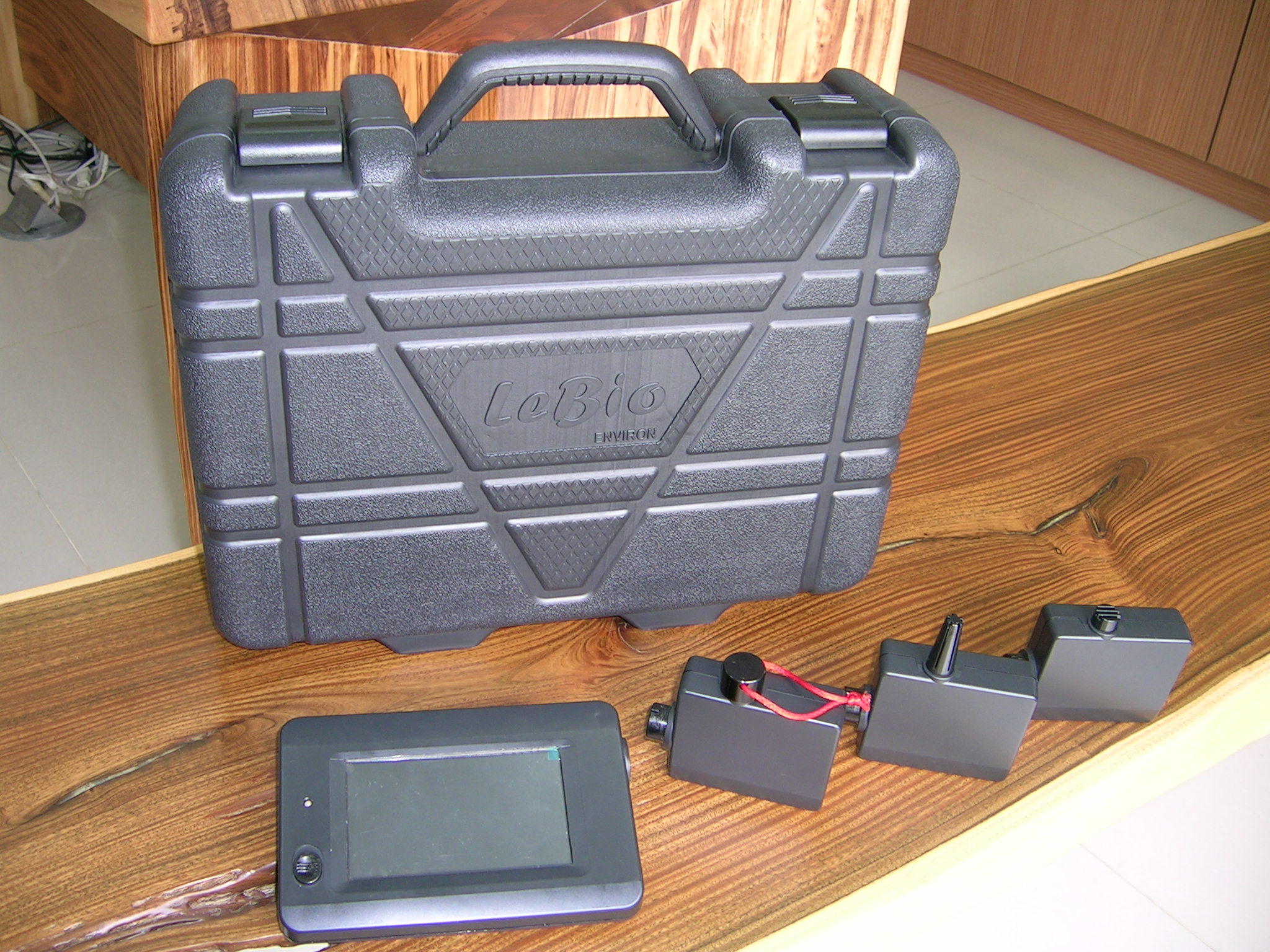

Suitcase

• Dimension: L372 x W290 x H126 mm
• Weight: 2650g
